Please Call for Availability
Fits 67-69 Camaro, Firebird and 68-74 Nova, Omega, Apollo and Ventura
Bolt in - requires minor welding

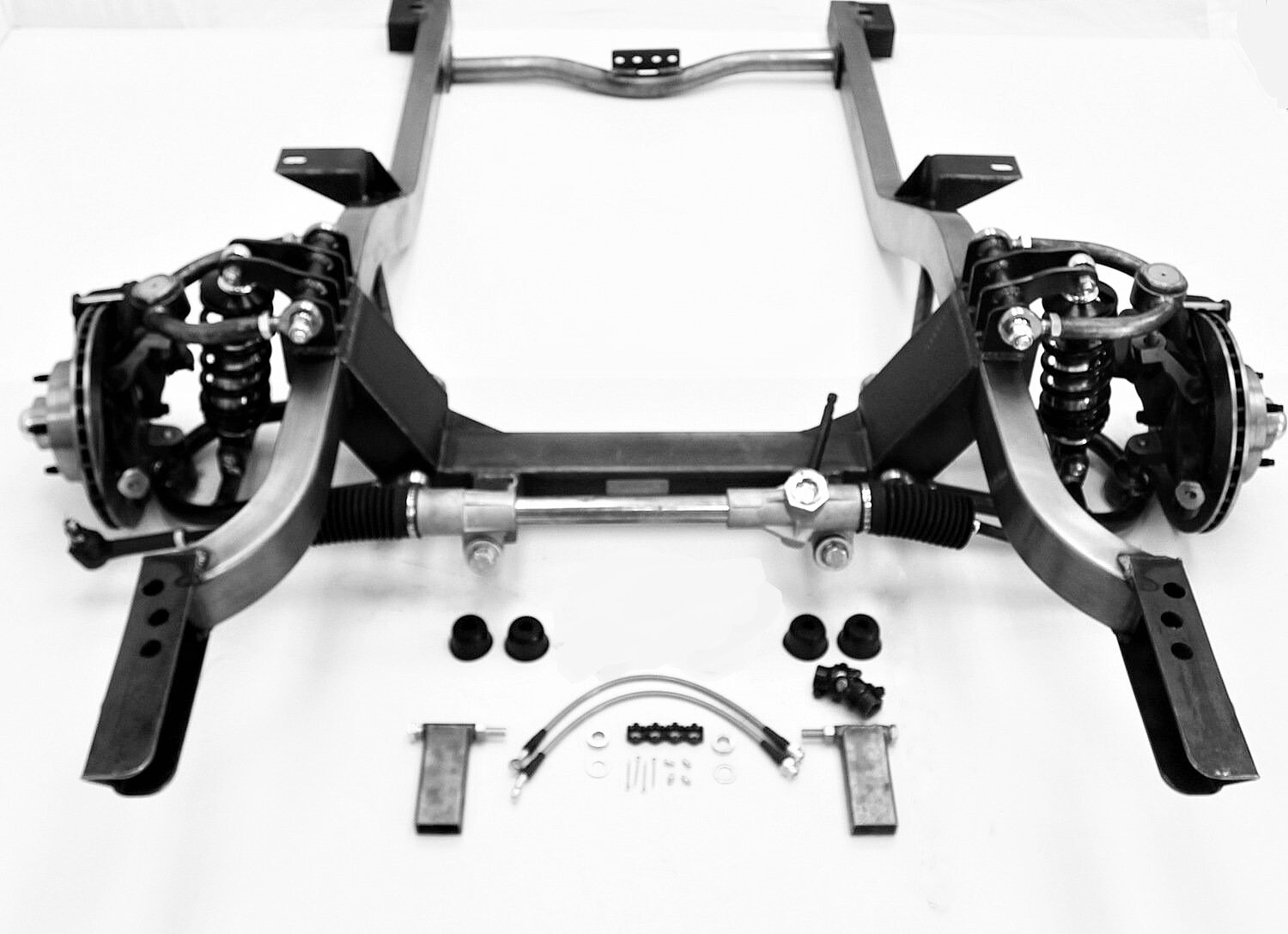

Mustang II Based Front suspension
Kit includes:
11" Drilled & Slotted Rotors (5x4.75 or 5x4.5 Bolt Pattern)
Single Piston GM Metric Calipers
18" Steel Braided Brake Hoses-Wilwood Kits Do NOT Include Brake Lines
QA1 Single Adj. PromaStar Shocks
Tubular Control Arms w/ Screw In Ball Joints
Ball Joint Boots, Hardware & Grease Fittings
Manual Rack and Pinion
Optional Power Rack
Universal Steering Joint for Rack (steering shaft not included)
SBC/BBC Frame Mounts (Not Installed)

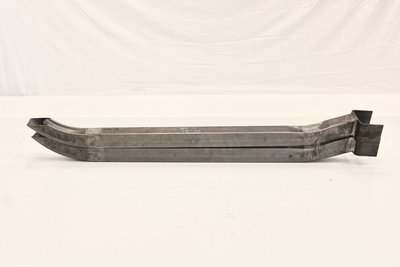

Universal Transmission Cross Member (Not Installed)
Accepts Stock Body Bushings
Fits up to a 275/35-19 tire with a 6" backspace
*Expect 3-4 Weeks from Date of Purchase Until Item is Shipped.
*Expect Shock and/or Brake Upgrades to be Drop Shipped From Manufacturer.
*This front end may require the use of aftermarket rack and pinion headers.
*The item will ship through FedEx Freight and will require a forklift to unload.
Available QA1 Adjustable & Rebuildable Ball Joints
For a variety of racing applications, QA1's Screw-In Style Ultimate Ball Joint is a great choice. This patented, self-lubricating design is 100% owner rebuildable and is exclusive to QA1.
Ultimate Low Friction Operation - Infinite Preload adjustment allows breakaway torque to be set as low as 0 ft. lbs. for a completely smooth, bind-free operation.
Wear Resistant Design - Precision tolerance ball-to-race conformity results in even load distribution for unsurpassed wear resistance. Precision ground 52100 bearing steel race ensures long life and ultra-smooth operation.
On-the-Car Adjustability - Infinite preload adjustment. No need to remove the ball joint from the car for adjustment.
Self-Lubricating - Fully greaseable enhanced by self-lubricating components to ensure smooth operation.
Multiple Stud Lengths Available - Various ball studs are available for easy geometry changes. Fine tune your roll center.
Owner Rebuildable - Rebuilding is simple. All parts are replaceable at economical prices.
Wilwood Kit Letter Key
No Letter- Smooth Rotor, Black Caliper
D- Drilled Rotor, Black Caliper
DR- Drilled Rotor, Red Caliper
DP- Drilled Rotor, Polished Caliper
P- Smooth Rotor, Polished Caliper
R- Smooth Rotor, Red Caliper
