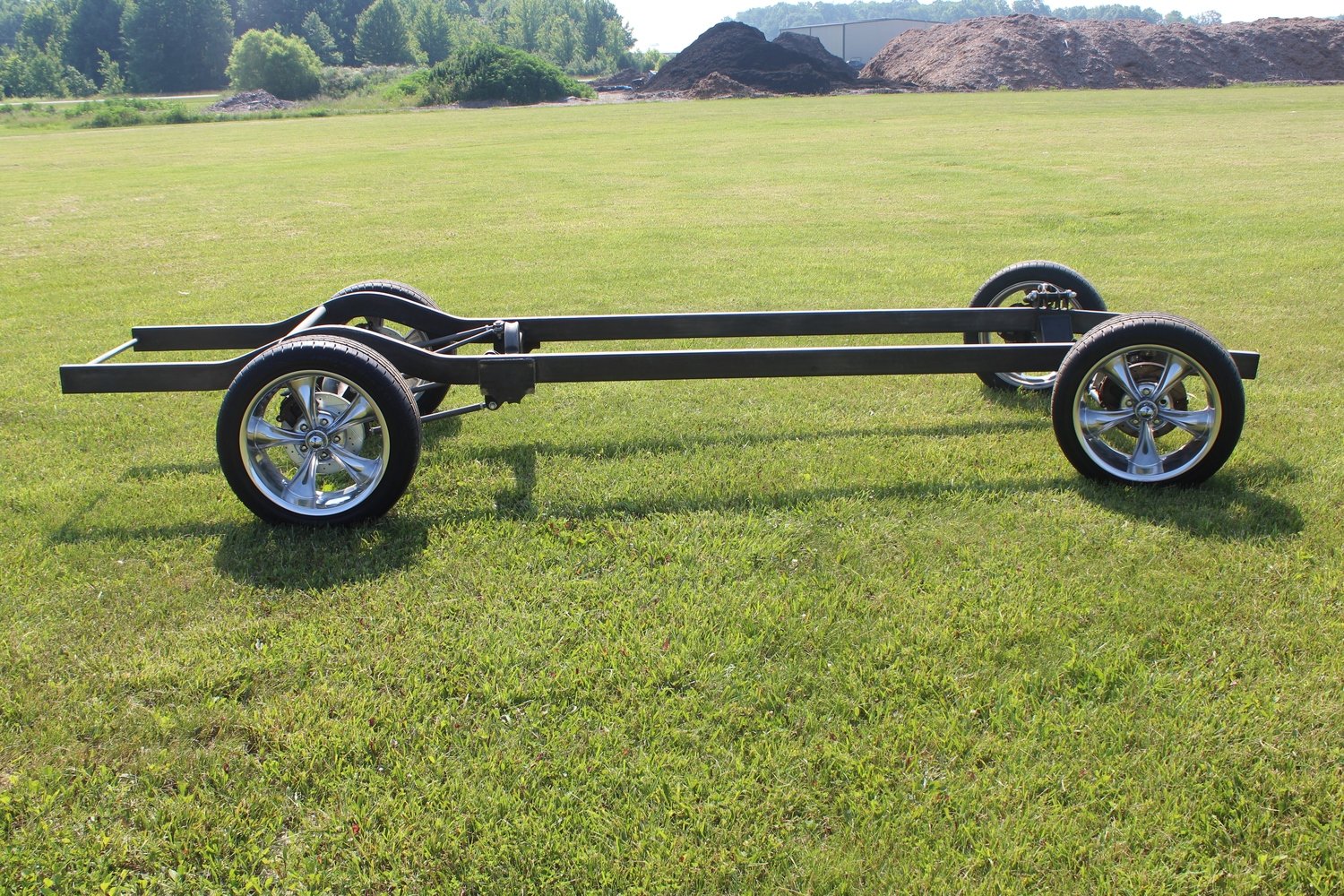

1947-1954 Chevy truck frame.
Available for Pickup or Scheduled Delivery by CR only.
2x4 One piece boxed frame rails 3/16" thick. Built to your specified track width front and rear.
This listing does not include wheels/tires.
Rail is 1" longer to center the wheel in the rear wheel well
Mustang II based front suspension.
Standard Frame Width of 34", Standard Front Track Width of 60", Standard Wheelbase of 117"
Front Includes:
QA1 Single Adjustable PromStar Shocks
Tubular control arms with chromoly rod ends and screw in ball joints
Manual rack and pinion
Optional Power Rack Includes Fittings
Choice of standard height or 2" drop spindles
11" drilled and slotted rotors(5x4.5 or 5x4.75 bolt pattern)
Single piston GM metric calipers with pads
Two 18" steel braided brake hoses
Universal Cab and Bed Mounts Not Welded
Transmission Cross Member
SBC/BBC Motor Mounts
Rear suspension:
9" Ford Rear End
Includes choice between street 4-bar, 4-link or ladder bar rear suspension
All brackets, rod ends and hardware
Diagonal link/Pan hard bar
QA1 Single Adjustable PromStar Shocks
No Returns or Refund on Custom Orders.
Expect 8-10 Weeks from Date of Purchase Until Item is Ready.
